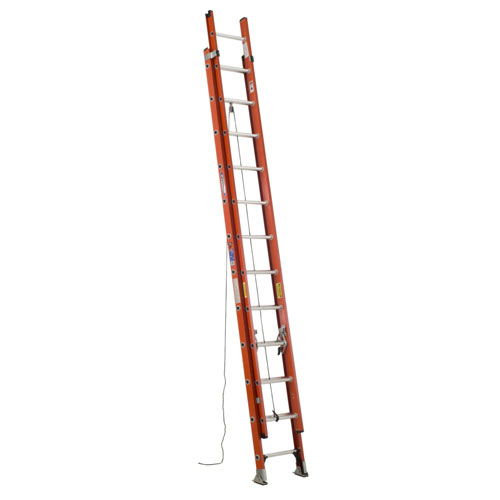

SKU Werner 6224-2

Features

• Exclusive ALFLO® rung joint means TWIST-PROOF® performance
• 1-5/8in Slip-resistant TRACTION-TRED® D-rungs
• Smooth operating pulley with polypropylene rope
• Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails
• External guides at top of base section securely interlock rails
• Heavy Duty extruded rung locks are spring loaded to operate smoothly
• Pre-pierced holes for easy field installation of accessories
• Base and fly separate easily to use base section as single ladder
• Combination Rail Shield Bracket and Shoe with SHU-LOK® and Slip-Resistant Pad
• Molded Rung Braces on bottom step for increased durability
• Mar-Resistant Molded End Caps

Specifications

Assembled Depth (in.)	144 in	Assembled Height (in.)	6.3 in
Assembled Width (in.)	18.88 in	Certifications and Listings	OSHA Compliant
Ladder Height (ft.)	24	Ladder Rating	Type 1A – 300 lbs.
Load weight capacity	300 lb.	Manufacturer Warranty	na
Material	Fiberglass	Maximum ladder length (ft.)	24
Maximum reach (ft.)	23	Minimum ladder length (ft.)	12
Nonslip tread	24	Number of Steps	24
Product Weight (lb.)	52	Returnable	90-Day
Rung/Step Depth	1.5 in	Step rise (in.)	12
Weather Resistant
