Features
- Rack and pinnion telescoping fence rails make fence adjustments smooth and accurate
- 24" of rip capacity for ripping 4x8 plywood or OSB sheets
- Run off of 20V/60V Flexvolt battery system for maximum portability
- Site-Pro Modular Guarding System allows for tool free adjustment of the guarding
- Power-Loss Reset prevents accidental re-starts following a power disruption when the switch is left in the "on" position
- Metal roll cage base offer greater durability than plastic bases
- On board strorage for Guard, Fence, wrenches and miter gauge
- Table coating reduces friction for smoother cutting
Specifications
| ARBOR SIZE |
5/8" IN |
| BLADE DIAMETER |
8-1/4" |
| DEPTH OF CUT AT 45° |
1 3/4" IN |
| DEPTH OF CUT AT 90° |
2 1/2" IN |
| DUST PORT DIAMETER |
2 1/2" IN |
| FOR WOOD CUTTING |
YES |
| MAX RIP TO LEFT OF BLADE |
12" IN |
| MAX RIP TO RIGHT OF BLADE |
24" IN |
| MAX WIDTH OF DADO |
N/A IN |
| NO LOAD SPEED |
5800 RPM |
| POWER TOOL TYPE |
CORDLESS |
| SYSTEM |
60V |
| TOOL HEIGHT |
12.8 IN |
| TOOL LENGTH |
22.8 IN |
| TOOL WEIGHT |
48 LBS |
Includes

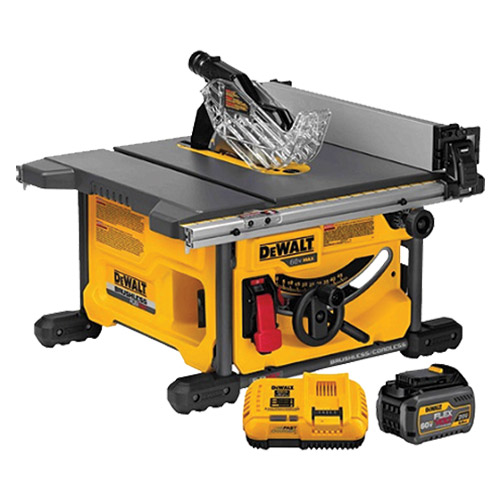

- DCS7485 60V MAX* Table Saw
- Carbide Blade
- Push Stick
- Blade Guard
- Rip Fence
- Non-Thru Cut Riving Knife
- 20V/60V MAX* FLEXVOLT Battery
- Fast Charger
- (2) Blade Wrenches
- Miter Gauge
Contact us for warranty information |
