Features
- Durable 1.25HP motor delivers the power to meet the toughest applications
- Variable speed control feature enables bit speed to be optimized for changing applications
- Soft-starting motor features full-time electronic feedback that maintains motor speed through the cut
- Dual LED's and clear sub-base ensure maximum visibility in operation
- Adjustment ring enables controlled bit depth changes to within 1/64" (fixed base only)
- Plunge base incorporates fine-tune adjustment rod for precise depth setting
- Large, low-pressure spindle lock button allows for comfortable, single wrench bit changes
- Multiple shaft-lock detents enable quick and simple bit changes
- Depth ring and clamping mechanism combine to ensure motor remains locked in position (fixed base only)
- Spring-loaded release tabs allow for quick base removal (fixed base only)
- Motor can be transitioned quickly and easily between fixed and plunge bases
- Overmolded rubber handles provide a comfortable and secure grip (plunge base only)
- Allows up to 1.5" of depth travel with standard base & 2" with plunge base
- Aluminum motor housing and base construction provides long term durability
- Extended sub-base provides greater work surface contact for improved user control (fixed base)
- Large plunge base platform provides added stability for heavier applications and sub-base accepts universal template guides
- Extended 8-slot 1/4" collet maximizes surface contact with router bit shank for a tighter grip
Specifications
| Amps |
7.0Amps |
| Horsepower |
1-1/4HP |
| No Load Speed |
16,000-27,000rpm |
| Collet Diameter |
1/4" |
| Plunge Stroke |
2" |
| Depth Stop |
5 |
| Base Dimension |
4" (standard),4 3/8" x 5 3/4" (plunge)" |
| Spindle Lock |
12 Position |
| Tool Weight |
4.1 (fixed) , 6.2 (plunge)lbs |
| Shipping Weight |
8lbs |
Includes

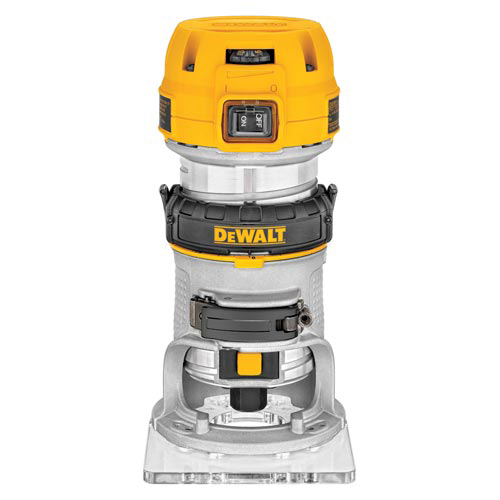

- DWP611PK 1-1/4 HP Max Torque Variable Speed Compact Router Combo Kit with LED's
