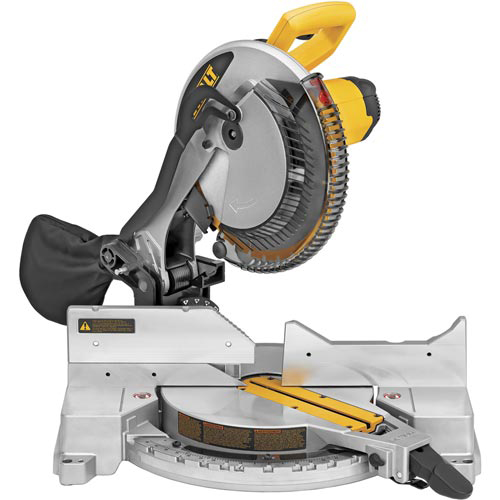

12" (305mm) Single-Bevel Compound Miter Saw

Product Information

Item SKU

DeWalt DW715

Item Name

12" (305mm) Single-Bevel Compound Miter Saw

Additional Information

Features

15 Amp motor, 4,000 rpm delivers extended power and durability
Adjustable stainless steel miter detent plate with 11 positive stops improves productivity and ensures cutting
Precise miter system and machined base fence support optimize cutting accuracy
Tall sliding fence supports crown molding up to 5-1/4" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts
Bevels 0°-48° to the left and 0°-3° to the right for increased capacity
0°-50° left and right miter capacity for greater versatility
Lightweight (42 lbs.) with built-in carry handle for easy portability
Cam lock miter handle with detent override deliver quick and accurate miter angles
3 Hardened Steel Bevel Stops at 0°, 33.9° and45° delivers versatility at most common bevel angles

Specifications

Blade Diameter	12"
Amps	15Amps
No Load Speed	4,000rpm
Arbor Size	5/8" or 1"
Vertical Capacity: Baseboard Against Fence	6-1/2"
Vertical Capacity: Crown Molding Vertically Nested	5-1/4"
Horizontal Capacity: Baseboard Lying Flat	8"
Horizontal Capacity: Crown Molding Lying Flat	6-1/2"
45° Bevel Cut Capacity (dimensional lumber)	2x8
90° Cross-Cut Capacity (dimensional lumber)	4x6"
90° Cross-Cut Capacity (Max Width)	2x8
45° Miter Cut Capacity (Max Height)	4x4 dimensional lumber
45° Miter Cut Capacity (Max Width)	2x6 dimensional lumber
Tool Weight	42lbs
Shipping Weight	49lbs

Includes
