Features

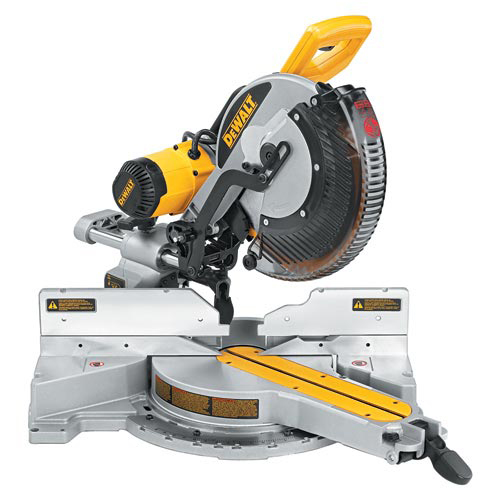

- Powerful 15 Amp, 3,600 rpm motor delivers extended power and durability
- Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Precise miter system and machined base fence support optimize cutting accuracy
- Tall sliding fences support crown molding up to 6-5/8" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts
- Innovative gearbox and belt-drive design increases vertical cutting capacity
- Single lever action double bevel design easily bevels left and right 0° - 48° with positive stops at 0°, 22.5°, 33.9° and 45° in both directions permitting user to flip the saw and not the material
- Exclusive Back Fence Design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°
- Miters 60° to the left and 50° to the right provides increased capacity
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Cam lock miter handle with detent override deliver quick and accurate miter angles
- Compact, lightweight design (53 lbs.) allows for easy transport and storage
- Designed for use with the DW7187 DEWALT® adjustable miter saw laser system which enhances visibility of the cutting path
Specifications
| Blade Diameter |
12" |
| Amps |
15Amps |
| No Load Speed |
3,600rpm |
| Arbor Size |
5/8" or 1" |
| Vertical Capacity: Baseboard Against Fence |
6-1/2" |
| Vertical Capacity: Crown Molding Vertically Nested |
6-5/8" |
| Horizontal Capacity: Baseboard Lying Flat |
16" |
| Horizontal Capacity: Crown Molding Lying Flat |
11-1/4" |
| 45° Bevel Cut Capacity (dimensional lumber) |
2x14 (2x16 with back fence) |
| 90° Cross-Cut Capacity (dimensional lumber) |
2x14 (2x16 with back fence)" |
| 90° Cross-Cut Capacity (Max Width) |
16" |
| 45° Miter Cut Capacity (Max Height) |
2x12 |
| 45° Miter Cut Capacity (Max Width) |
2x12 |
| Tool Weight |
53lbs |
| Shipping Weight |
57lbs |
Includes
- Carbide blade
- Blade wrench
- Blade wrench
- Vertical material clamp
Contact us for warranty information |
