Features

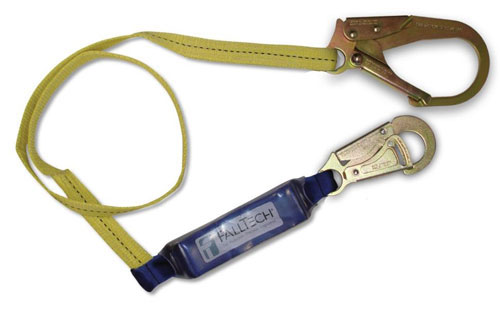

- Single-leg lanyard for fall arrest
- ClearPack shock absorber is designed to limit arrest forces to 900 lbs.
- Clear PVC cover protects shock absorber and allows for easy inspection
- 1" polyester webbing has a tensile strength of 9,800 lbs.
- Double-locking snap hook at the attachment end with rebar hook at the anchorage end
Specifications
| Webbing: |
Polyester; Min. 6,000 lbs. tensile strength |
| Energy Absorber: |
Polyester; activation greater than 450 lbs. |
| Connectors: |
Alloy Steel; Min. 5,000 lbs. tensile strength |
| Connector Gates: |
Alloy Steel; Min. 3,600 lbs. front and side load |
| Tensile Strength: |
Min. 5,000 lbs. |
| Max. Capacity: |
310 lbs. |
| Max. Freefall: |
6 feet |
| Average Arrest Force: |
Less than 900 lbs. |
| Max. Elongation: |
42 inches |
| Relevant Standards |
OSHA: CFR1926.502, CFR1910.66, ANSI: Z359.13-2009, (Z359.13-2009 supercedes Z359.1-2007 for Shock Absorbing Lanyards) |
Contact us for warranty information |
