Features
- Soft-starting, 12-amp motor featuring full-time electronic feedback (10,000 - 23,000 RPM)

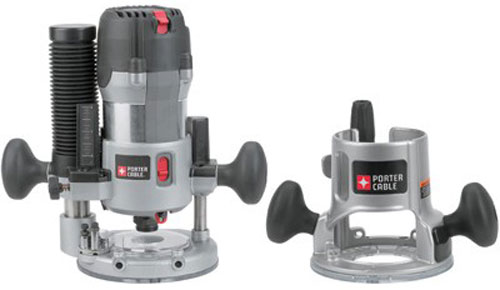

- Motor transitions quickly between fixed base (included), plunge base (included), and traditional spiral down bases (690 series)
- Release the motor, adjust bit height, and clamp the motor from above the router table with 3/16" hex socket (not included) or model #75301 kit (not included)
- Dual-position on/off switch with automatic bit-changing lock-"off"
- Macro-height lever for coarse adjustments and tool-less motor release
- Fine depth settings to 1/128" with micro-adjustment knob
- Plunge base features thumb rotating stop turret, brass bushings, finger adjustable micro-depth stop, and through-the-base dust collection
Specifications
| Power: |
120V AC, 60 Hz |
| Peak HP: |
2 1/4 |
| Rated Input Current (Amps): |
12 |
| Motor Diameter: |
3 1/2" |
| No-Load Speed (RPM): |
10,000 - 23,000 |
| Collets: |
1/4" & 1/2" |
| Base: |
Round |
Includes
- Router motor #8902
- Base #8901
- 1/4" collet # 42999
- 1/2" collet #42950
- Collet wrench #42596
- Two carrying cases
- Operating manual
Contact us for warranty information |
