Features
- High-strength, double-braided rope HLL with alloy steel tensioning device
- Requires no special tools and can be installed and removed in minutes
- Requires use of Shock absorbing Lanyard or Self-Retracting Device for fall arrest
Specifications
| Rope: |
Hybrid Vectran: 8,000 lb. tensile strength. |
| Tensioner: |
Aluminum alloy, 6,000 lb. tensile strength. |
| Connectors: |
Alloy Steel; Min. 8,000 lbs. tensile strength |
| Connector Gates: |
Alloy Steel; Min. 3,600 lbs. front load and side load |
| Tensile Strength: |
Min. 5,000 lbs. |
| Max. Capacity: |
310 lbs./user - up to 4 users. |
| Max. Allowable Freefall: |
6 feet |
| Max. Input Arrest Force: |
900 lbs./user - up to 4 users. |
| Relevant Standards |
|
| OSHA: |
CFR1926.502, CFR1910.66 |
| ANSI: |
A10.32-2004 |

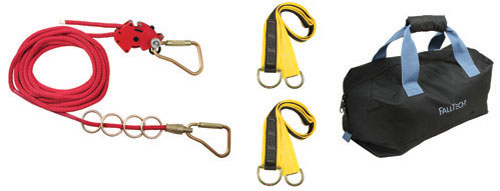

Includes
- Hybrid synthetic Vectran rope Horizontal Life Line with swivel assembly
- Aluminum tensioning device with auto slip pre tension indication
- 2 reinforced, heavy duty anchor slings with a 6,500 lb rating
- 2 large carabiners with a 8,000+ pound rating & 4 O-rings for multiple worker tie offs
Contact us for warranty information |
