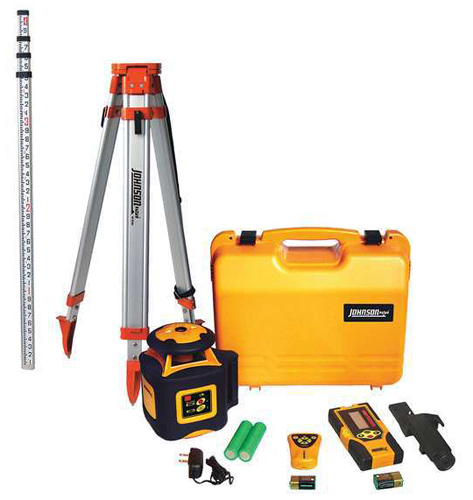

Electronic Self Leveling Horizontal & Vertical Rotary Laser Level Kit

Product Information

Item SKU

Johnson 40-6536

Item Name

Electronic Self Leveling Horizontal & Vertical Rotary Laser Level Kit

Additional Information

Features

Electronic self-leveling and designed for outdoor use
Reinforced metal roof and glass enclosed beacon
Electronic beam shield to turn the laser beam off from one to three quadrants for multiple laser usage
Vibrate mode ignores slight movements as in windy conditions
Electronically-controlled dual slope feature
Visual and audible alarms when beyond leveling range

Specifications

Rotary Laser Specifications:

Laser beam color — Red

Operating range without laser detector — 200' diameter

Operating range with laser detector — 2000' diameter

Accuracy — ±¹/₁₆" at 100'

Rotation speed — 700 rpm

Self-leveling? — Yes

Self-leveling range — ±5°

Slope — ±8°

Power supply — Rechargeable NiMH battery pack, 6V adapter or 4 C alkaline batteries

Ingress protection rating — IP66 (equipment is dust tight and protected against heavy jet spray)

Operating temperature — 14°F - 113°F

Includes

Contact us for warranty information
