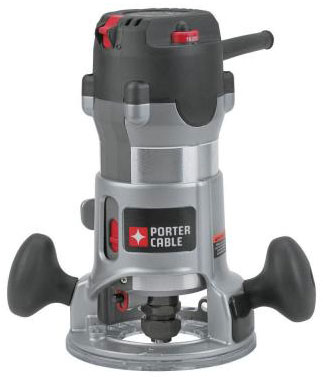

SKU Porter Cable  892

Features

• Soft-starting, 12 Amp motor features full-time electronic feedback that maintains motor speed through the toughest applications
• Variable-speed control feature (10,000 – 23,000 rpm) enables bit speed to be optimized for changing applications
• Release the motor, adjust bit height, and clamp the motor from above the router table with 3/16″ hex socket (sold separately) or model # 75301 kit (sold separately). GripVac™ base only
• Dual-position switch allows user to cut power while maintaining control of the router
• Overmolded grips for greater comfort in extended use
• Spindle lock feature allows for single wrench bit changes
• Durable latch lever enables quick and simple coarse depth adjustments and motor release for transition between bases
• Rack and pinion adjustment provides fine depth settings to 1/128″
• Collets included to accept 1/4″ and 1/2″ shank bits
• Motor transitions quickly between bases

Specifications

Power:	120V AC, 60 Hz
Amps:	12 Amps
Horsepower:	2-1/4 HP
No Load Speed:	10,000 – 23,000 rpm
Motor Diameter:	3-1/2 “
Collets: “	1/4″ & 1/2″
Base:	Round
Length:	9 “
Width:	6 “
Height:	At Zero: 9.9″; Tallest: 11.1 “
Weight:	9 lbs

Includes

• 8902 router motor
• 8901 fixed base
• 1/4″ & 1/2″ collets
• Collet wrench
• Carrying case
• Operating manual
