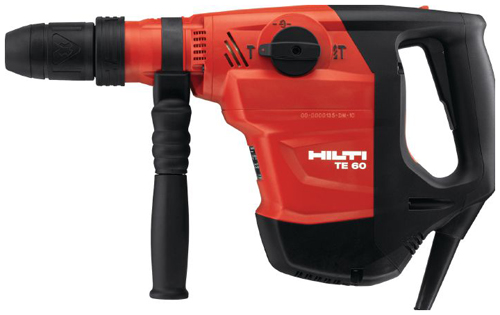

SKU Hilti TE 60

Features

• Virtually dustless coring and chiseling with the new, optional dust removal system
• Improved performance in large coring applications up to 4″ in masonry and unreinforced concrete
• Ruggedly built for a long lifetime
• Center of gravity close to the grip for good balance and handling
• Optimized for core drilling up to 4″ at a fraction of the weight of comparable tools
• Drilling anchor and through-holes in concrete and masonry 1/2″ – 4″, recommended 5/8″ in 1-1/2″
• Medium-duty demolition work
• Coring up to 4″ diameter in masonry and concrete with TE-Y-BK core bits
• Coring in masonry with optional DD-TE-Y adapter HDMU core bits up to 4″ diameter

Specifications

Rotation speed gear 1 under no load	350 rpm
Full hammering frequency	3300 impacts/minute
Single impact energy	5.4 ft-lbs
Hammer drill bits (optimum dia. range)	5/8 – 1-9/16 in
Chiseling function	Yes
Weight according EPTA-Procedure 01/2003	14.1 lb.
Active Vibration Reduction	No
Active Torque Control	No
Dust removal module	TE DRS-Y (optional)
Max. chiseling performance	55 in³/min
