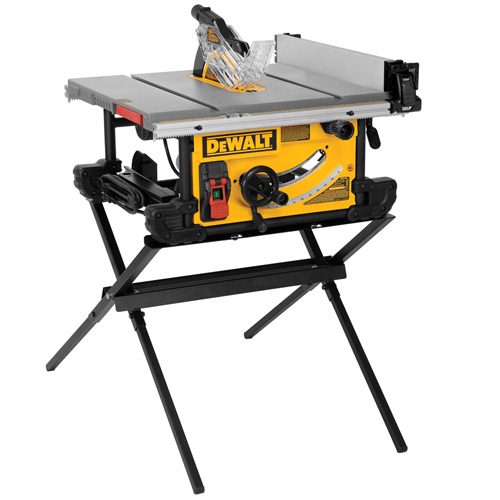

SKU DeWalt DWE7490X

Includes:

• 10″ 24-Tooth Carbide Blade
• 10″ 24-Tooth Carbide Blade
• Folding Table Saw Stand
• Miter Gauge
• Push Stick
• Folding Stand
• Rip Fence
• 2x Blade Wrenches
• Blade Guard Assembly

Features:

• Rack and pinion telescoping fence rails make fence adjustments fast, smooth, and accurate
• Patented material support, can be used for narrow rip cuts.
• 28-1/2″ of rip capacity easily cuts a variety of larger shelving and trim material
• On board Storage provides easy access to the Blade Guard Assembly, fence, riving knife, push stick, miter gage, wrenches, and cord wrap when not in use.
• Compact folding stand
• Blade Guard Assembly allows for tool free adjustments of the guard for different application
• Flip over fence, allows for narrow rip cuts.
• Telescoping fence rails retract to create a small, portable package.
• Features a 15.0 AMP high-torque motor with the power to cut pressure-treated lumber and hardwoods
• 2-1/2″ Dust Collection Port easily connects to a vacuum for efficient dust extraction
• 3-1/8″ depth of cut at 90 and 2-1/4″ at 45
• 21-7/8″ x 26 – 3/8″ table provides superior material support

Specifications

Amps	15.0Amps
No Load Speed	4800rpm
Blade Diameter	10″
Arbor Size	5/8″
Dust Port Diameter	2-1/2″
Depth of Cut at 90°	3-1/8″
Depth of Cut at 45°	2-1/4″
Max Rip To Right Of Blade	28-1/2″
Max Rip To Left Of Blade	16-1/2″
Max Width of Dado	13/16″
Tool Weight	58lbs
