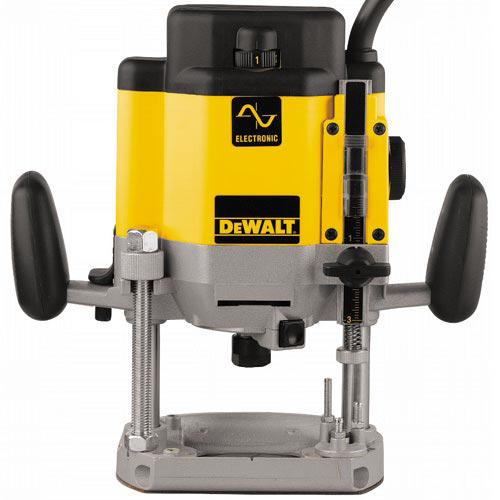

SKU DeWalt DW625

Features

• 15.0 Amp motor uses state-of-the-art circuitry for soft starts and smooth operation
• Full wave electronic variable speed motor runs at 8,000-22,000 rpm with constant speed under load to ensure a quality finish in all materials
• Rack and pinion depth adjuster, magnified scale and micro-fine bit depth adjuster provides fast and accurate depth settings
• Phosphorous bronze bushings provide a smooth and accurate plunge
• Spindle lock button allows for single-wrench bit changes
• Dust Extraction Adapter for cleaner work sites
• 1/4″ – 1/2″ collet capacity for greater versatility
• Guide Bushing adapter plate accepts standard guide bushings for template work
• One-piece motor shaft and spindle ensures perpendicularity and accuracy

Specifications

Amps	15.0Amps
Horsepower	3HP
No Load Speed	8,000-22,000rpm
Collet Diameter	1/2″, 1/4″
Plunge Stroke	2-7/16″
Depth Stop	3 Stage Turret Stop
Base Dimension	5-5/8 x 6-11/16″
Spindle Lock	Yes
Tool Weight	11.2lbs
Shipping Weight	16.0lbs

Includes

• 1/4″ collet
• 1/2″ collet
• Dust Extraction Adapter
• Template guide bushing adapter
• Wrench
