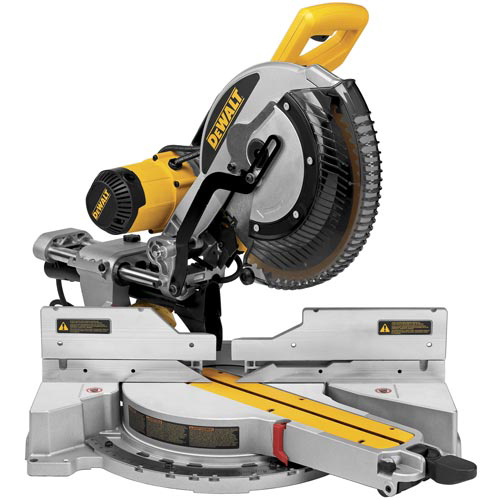

DeWalt 12″ Double Bevel Sliding Compound Miter Saw

SKU DeWalt DWS780

Integrated XPS cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility
Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
Super efficient dust collection system captures over 75% of dust generated
Tall sliding fences support crown molding up to 7-1/2″ nested and base molding up to 6-3/4″ vertically against the fence while easily sliding out of the way for bevel cuts
Exclusive Back Fence Design cuts up to 2×16 dimensional lumber at 90° and 2×12 at 45°
Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
Miters 60° to the right and 50° to the left providing increased capacity
Oversized bevel scale makes bevel angle adjustments accurate and easy
Compact, lightweight design (56 lbs.) allows for easy transport and storage
Cam lock miter handle with detent override deliver quick and accurate miter angles
Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
Innovative gearbox and belt-drive design increases vertical cutting capacity
Precise miter system and machined base fence support optimize durability and cutting accuracy

Specifications

Blade Diameter	12″
Amps	15Amps
No Load Speed	3,800rpm
Arbor Size	5/8″ or 1″
Vertical Capacity: Baseboard Against Fence	6-3/4″
Vertical Capacity: Crown Molding Vertically Nested	7-1/2″
Horizontal Capacity: Baseboard Lying Flat	16″
Horizontal Capacity: Crown Molding Lying Flat	13-3/4″
45° Bevel Cut Capacity (dimensional lumber)	2×14 (2×16 with back fence)
90° Cross-Cut Capacity (dimensional lumber)	2×14 (2×16 with back fence)”
90° Cross-Cut Capacity (Max Width)	16″
45° Miter Cut Capacity (Max Height)	2×12
45° Miter Cut Capacity (Max Width)	2×12
Tool Weight	56lbs
Shipping Weight	66lbs
