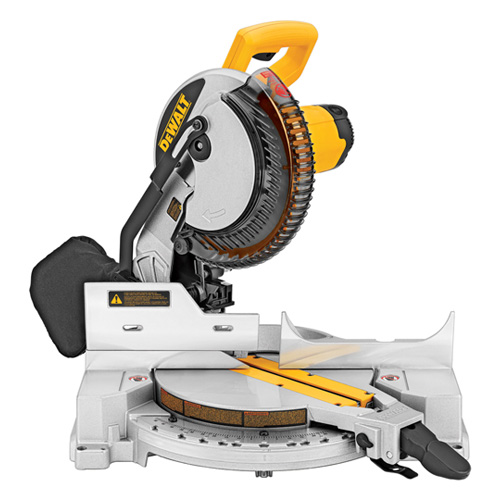

SKU DeWalt DW713

Includes:

• Blade Wrench
• Carbide Blade
• Users Guide

Features:

• 15 Amp, 5,000 rpm motor delivers extended power and durability
• Stainless steel detent plate with 11 positive stops provides repeatable accuracy and jobsite duability
• Tall sliding fences support crown molding vertically 4-1/2″ and easily slides out of the way for bevel cuts
• Machined base fence support maintains fence perpendicularity with blade for cutting accuracy
• Cam miter lock for quick and accurate miter table positioning
• Miter detent override for fine adjustment and precise miter angles
• 0-50° left and right miter capacity for greater versatility
• Bevels 3°-48° for increased cut capacity
• Lightweight (35lbs), built-in carrying handle for increased portability

Specifications

Blade Diameter	10″
Amps	15Amps
No Load Speed	5,000rpm
Arbor Size	5/8″
Vertical Capacity\: Baseboard Against Fence	3-1/2″
Vertical Capacity\: Crown Molding Vertically Nested	4-1/2″
Horizontal Capacity\: Baseboard Lying Flat	6″
Horizontal Capacity\: Crown Molding Lying Flat	5-1/4″
45° Bevel Cut Capacity (dimensional lumber)	2×6
90° Cross-Cut Capacity (dimensional lumber)	4×4″
90° Cross-Cut Capacity (Max Width)	2×6 dimensional lumber
45° Miter Cut Capacity (Max Height)	2×4
45° Miter Cut Capacity (Max Width)	2×4
Tool Weight	35lbs
