SKU DeWalt DW717

Includes:

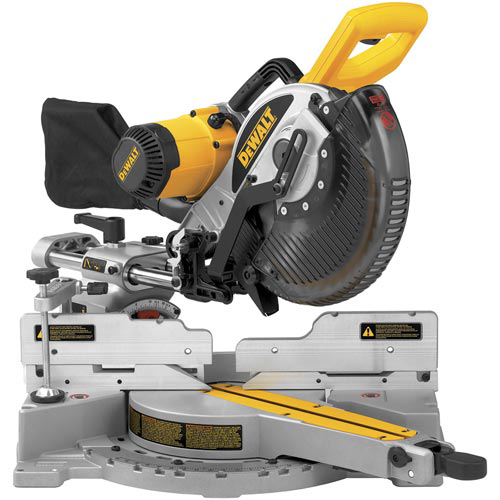

• 10″ (254mm) Double-Bevel Sliding Compound Miter Saw


Features:

• Exclusive bevel detent system – 7 positive stops delivers fast accurate repeatable cuts
• Adjustable stainless steel miter detent plate with 11 positive stops improves productivity & ensures cutting accuracy
• Optimizes cutting accuracy
• Machined base fence support maintains fence perpendicularity with blade for cutting accuracy
• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
• Exclusive cross cut stop positions cutting head for maximum vertical cut capacity
• Best in class cross cut capacity 12″ at 45° angle using back fence design
• Vertical cut capacity nested crown up to 6-1/4″
• Tall sliding fence supports up to 6″ base molding to the left of blade & up to 3-1/2″ to the right of the blade
• Miter capacity left 60° and right 52° for greater versatility
• Bevels 0-48 for increase cut capacity
• Cam lock miter handle provides fast locking action of miter table
• Horizontal handle improved ergonomics provides increased comfort
• Laser compatible, designed for use with the DWS7085 LED worklight or DW7187 DEWALT® adjustable miter saw laser system
• Lightweight (51 lbs.) with built-in carrying handle for easy portability

Specifications

Blade Diameter	10″
Amps	15Amps
No Load Speed	4,000rpm
Arbor Size	5/8″
Vertical Capacity: Baseboard Against Fence	6″ Left – 3-1/2 Right”
Vertical Capacity: Crown Molding Vertically Nested	6-1/4″
Horizontal Capacity: Baseboard Lying Flat	14″
Horizontal Capacity: Crown Molding Lying Flat	10-3/4″
45° Bevel Cut Capacity (dimensional lumber)	2×12 (2×14 with back fence)
90° Cross-Cut Capacity (dimensional lumber)	2×12 (2×14 with back fence)”
90° Cross-Cut Capacity (Max Width)	14″ Special Set Up
45° Miter Cut Capacity (Max Height)	4″
45° Miter Cut Capacity (Max Width)	8″
Tool Weight	51lbs
Shipping Weight	66lbs
